7/16 DIN Connector: An In-Depth Exploration

Byadmin

Introduction

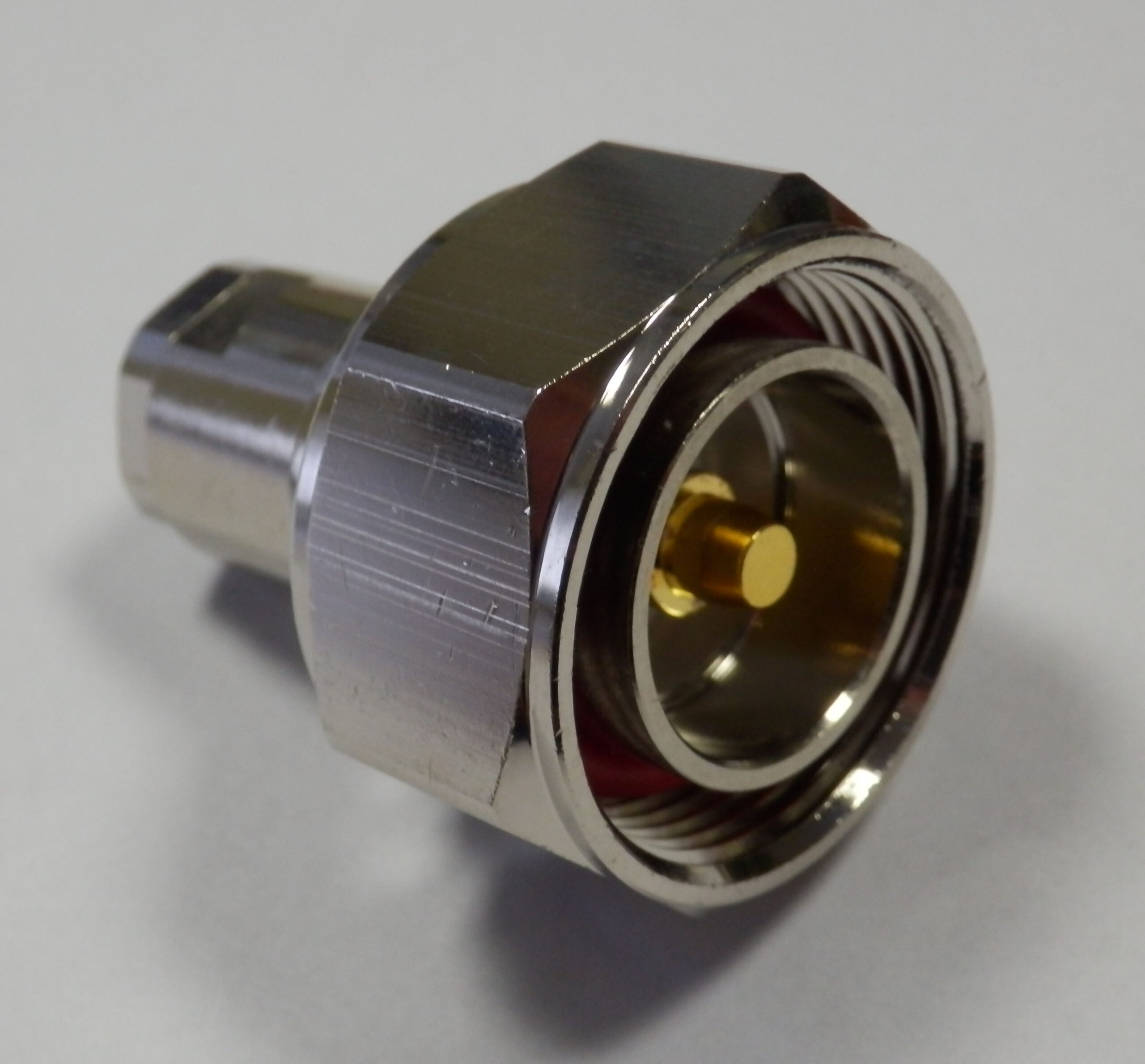

The 7/16 DIN connector is a robust, threaded RF connector designed for high-power transmission in demanding environments. Its name derives from the metric dimensions of the connector interface: 7 mm inner contact diameter and 16 mm outer contact diameter . This connector is widely used in telecommunications, broadcasting, and other applications requiring low passive intermodulation (PIM) and high reliability.amphenolrf.comWikipedia

Historical Background

Developed in the 1960s by SPINNER GmbH in Germany, the 7/16 DIN connector was initially designed for military applications requiring rugged and efficient connectors . It was later adopted for commercial use in analog cellular systems and standardized by the International Electrotechnical Commission (IEC) under the specification IEC 60169-4 .pe2bz.philpem.me.ukRF+3Wikipedia – Die freie Enzyklopädie+3Elecbee Blog+2pe2bz.philpem.me.uk

Technical Specifications

  • Impedance: 50 ohms
  • Frequency Range: DC to 7.5 GHz
  • Voltage Rating: Up to 2,700 volts RMS
  • Power Handling: High power capability, suitable for applications requiring up to several kilowatts
  • Coupling Mechanism: Threaded coupling ensures secure and vibration-resistant connections
  • PIM Performance: Designed to minimize passive intermodulation, making it ideal for multi-transmitter environments
  • Environmental Sealing: Often equipped with O-ring seals for weatherproofingWikipedia – Die freie Enzyklopädie+3Wikipedia+3Connector and Cable Assembly Supplier+3RFS World

Design and Variants

The 7/16 DIN connector features a threaded coupling mechanism that provides a secure and stable connection, essential in high-vibration environments. It is available in various configurations, including straight, right-angle, panel mount, and bulkhead versions, to accommodate different installation requirements .

Applications

Due to its high power handling and low PIM characteristics, the 7/16 DIN connector is utilized across various industries

  • Telecommunications: Widely used in cellular base stations and antenna systems
  • Broadcasting: Employed in high-power transmitters and broadcasting equipment
  • Military and Aerospace: Applied in systems requiring robust and reliable RF connections
  • Test and Measurement: Used in equipment that demands high-performance RF connectionsRF+2Connector and Cable Assembly Supplier+2

Advantages

  • High Power Capability: Suitable for applications requiring high power transmission
  • Low PIM: Designed to minimize passive intermodulation, ensuring signal integrity in multi-transmitter environments
  • Robust Design: Threaded coupling and durable construction provide reliable performance in harsh conditions
  • Versatility: Available in various configurations to meet diverse application needsConnector and Cable Assembly Supplier+2Wikipedia+

Considerations

  • Size and Weight: The robust design results in a larger and heavier connector, which may not be suitable for all applications
  • Installation Torque: Proper torque must be applied during installation to ensure optimal performance and prevent damage
  • Compatibility: Ensure compatibility with existing systems and components to maintain system integrity

For businesses and engineers sourcing 7/16 DIN connectors, shipping to Japan where tariffs are cheaper than China presents a strategic advantage. Japan’s favorable trade agreements and lower import duties can result in cost savings and streamlined logistics, making it an attractive destination for procuring high-quality RF components.
